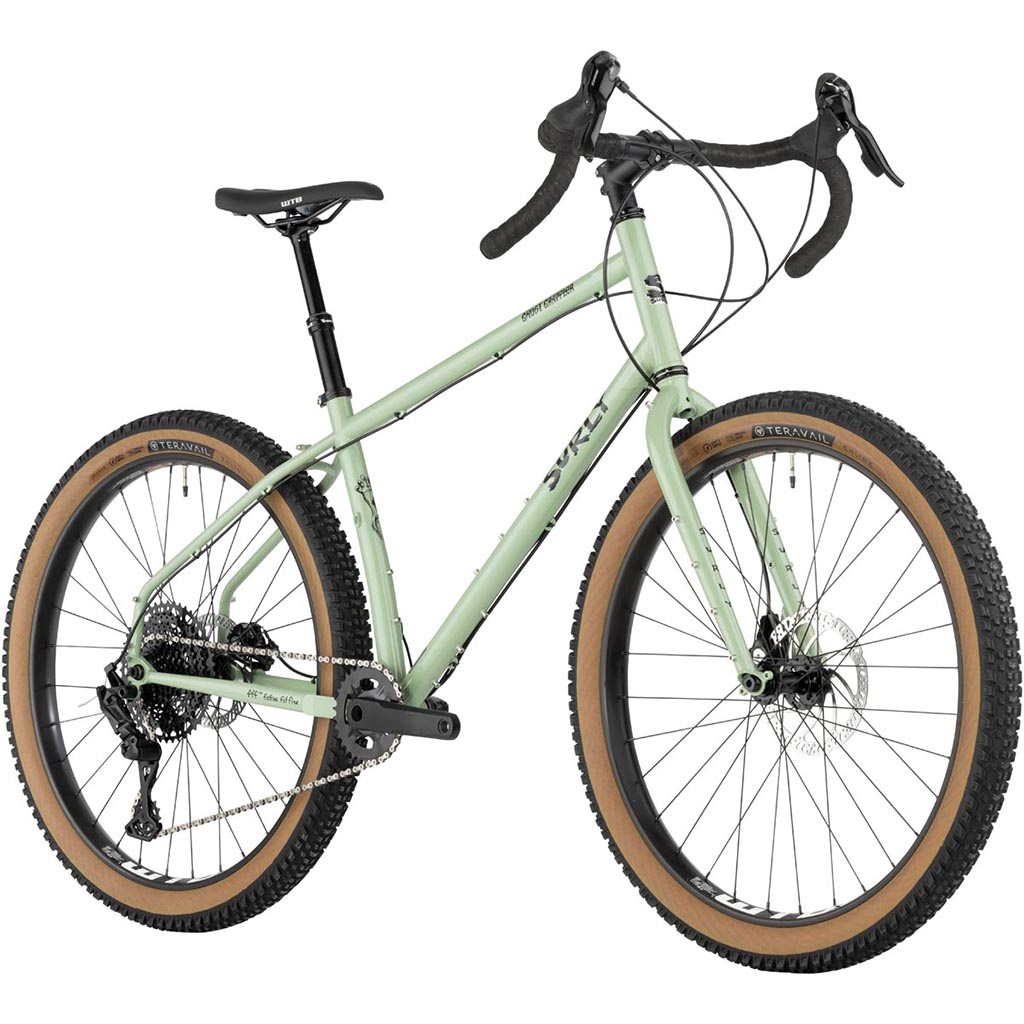

Surly Ghost Grappler Gravel Bike

A Trail Bike Tailored for Drop Bars

Off-road enthusiasts have been Frankensteining drop bars onto trail bikes for decades, so we designed the Ghost Grappler to scratch that itch with a little more precision. Engineered first and foremost around a stable and comfortable drop-bar hand position, its trail-ready geo provides a spirited ride on mixed terrain.

Cleared for girthy tires and decorated with an array of mounts for hauling your daily provisions and overnight gear, the Ghost Grappler is ready to take you and your paraphernalia down that overgrown fire road for an extrasensory experience. There’s nothing to be afraid of. Probably.

• Featuring Surly’s versatile Gnot-Boost spacing, allowing riders to run 142mm or Boost 148mm rear hubs; thru-axles; stealth dropper post routing; non-suspension corrected
• Custom dropouts ready to run single-speed or internally geared hub setups
• Seatstay-mounted bottle bosses, plus three-pack mounts at the top and bottom of the down tube
• Clearance for 27.5 x 2.8” or 29 x 2.1" tires (with or without fenders)

Specifications*

• Frame  -  100% Chromoly Steel frame, Natch tubing, double-butted main triangle, TIG welded, E.D. coated
• Fork  -  100% Chromoly Steel fork, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated
• Headset  -  Cane Creek 40
• Shock  -  N/A
• Rims  -  WTB ST i40 TCS
• Front Hub  -  Novatec 15x110mm, 32h
• Rear Hub  -  Novatec 12x148mm, 32h
• Spokes  -  2.0 Stainless
• Front Tire  -  Teravail Ehline, 27.5 x 2.5", 60tpi
• Rear Tire  -  Teravail Ehline, 27.5 x 2.5", 60tpi
• Pedals  -   N/A
• Crank  -  Samox 2PCS Boost 32t
• Bottom Bracket  -  Samox BSA 24
• Cassette  -  Microshift 11-48t
• Chain  -  KMC X10 Econo Black or NP/BLK
• Front Derailleur  -  N/A
• Rear Derailleur  -  Microshift M6205
• Shifters  -  Microshift SB-M100, AdventX Dual Control Levers
• Handlebar  -  Salsa Cowchipper 31.8
• Stem  -  Promax DA-296, 31.8 or Kalloy AS-007
• Brakes  -  Tektro Mira MD-C400
• Saddle  -  WTB Volt 142
• Seatpost  -  TransX YSP15, 30.9, 100mm travel

*Due to the unprecedented state of the industry, item specifications and price are subject to change without notice.
