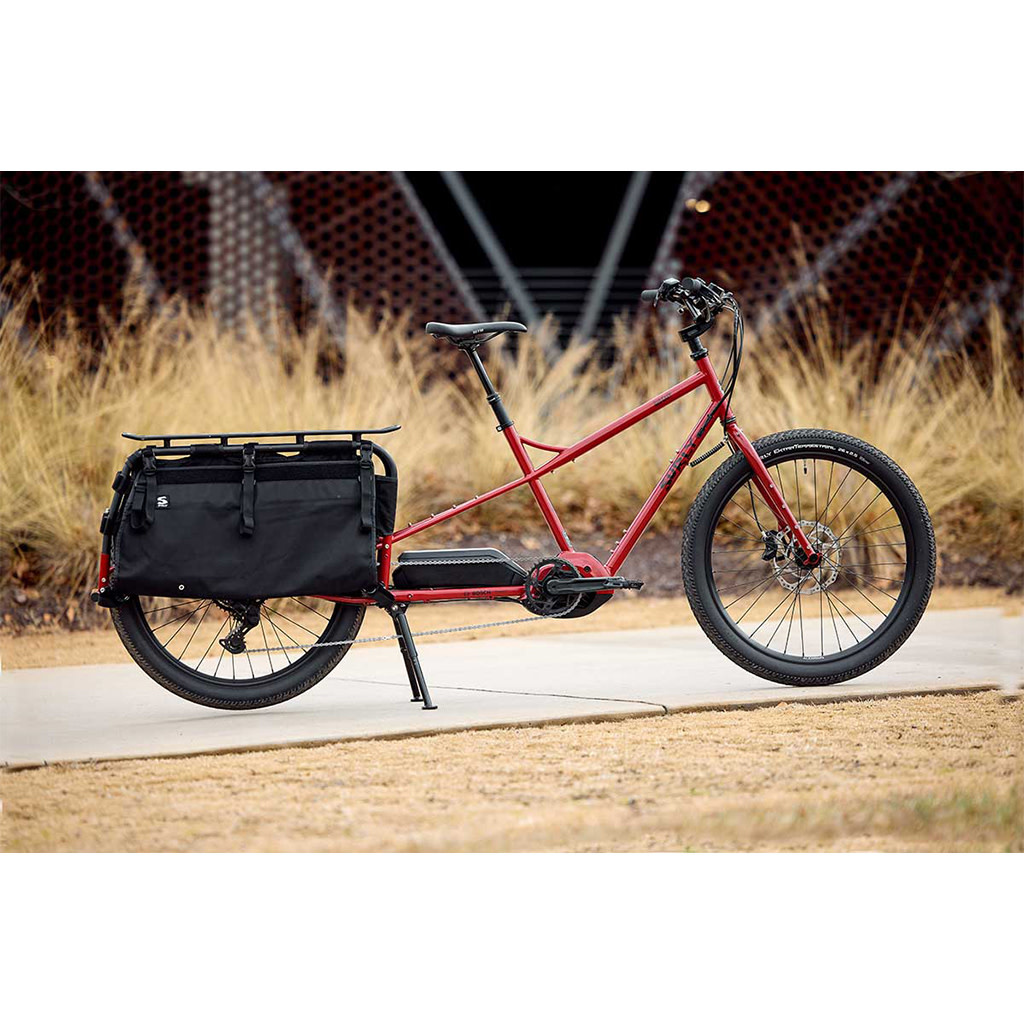

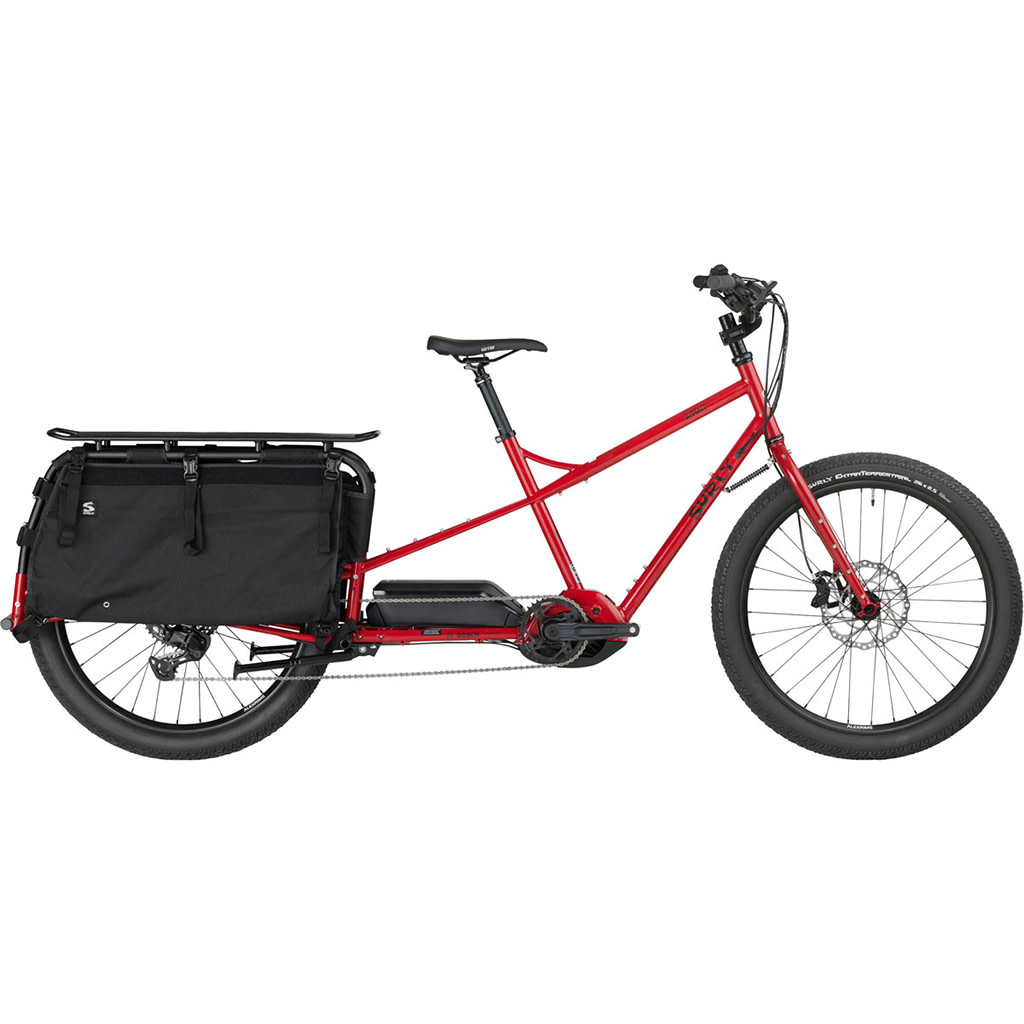

Surly Big Easy Cargo 26" E-Bike 2024

Simplify the Haul With an Electric Cargo Bike

Riding loaded with cargo is core to us here at Surly, whether we’re running a front rack and bag setup or a long-tail cargo bike with passengers along for the ride. There are times, however, when even the strongest riders are limited in what they can haul, so we created Big Easy – our long-tail electric cargo bike. Consider it the 18-wheeler of the cargo bike world, minus the diesel fumes.

When it comes to geometry, Big Easy rides and feels like a normal-length bike – the upright, engaged rider position keeps things comfortable. So, whether you want to wave goodbye to the old family gas hog, upgrade your bike-supported business’s two-wheeled fleet, or simply haul more bowling balls during your daily commute, Big Easy makes doing all that, well, easy.

• Frame  -  Big Easy
• Fork  -  Dinner Fork

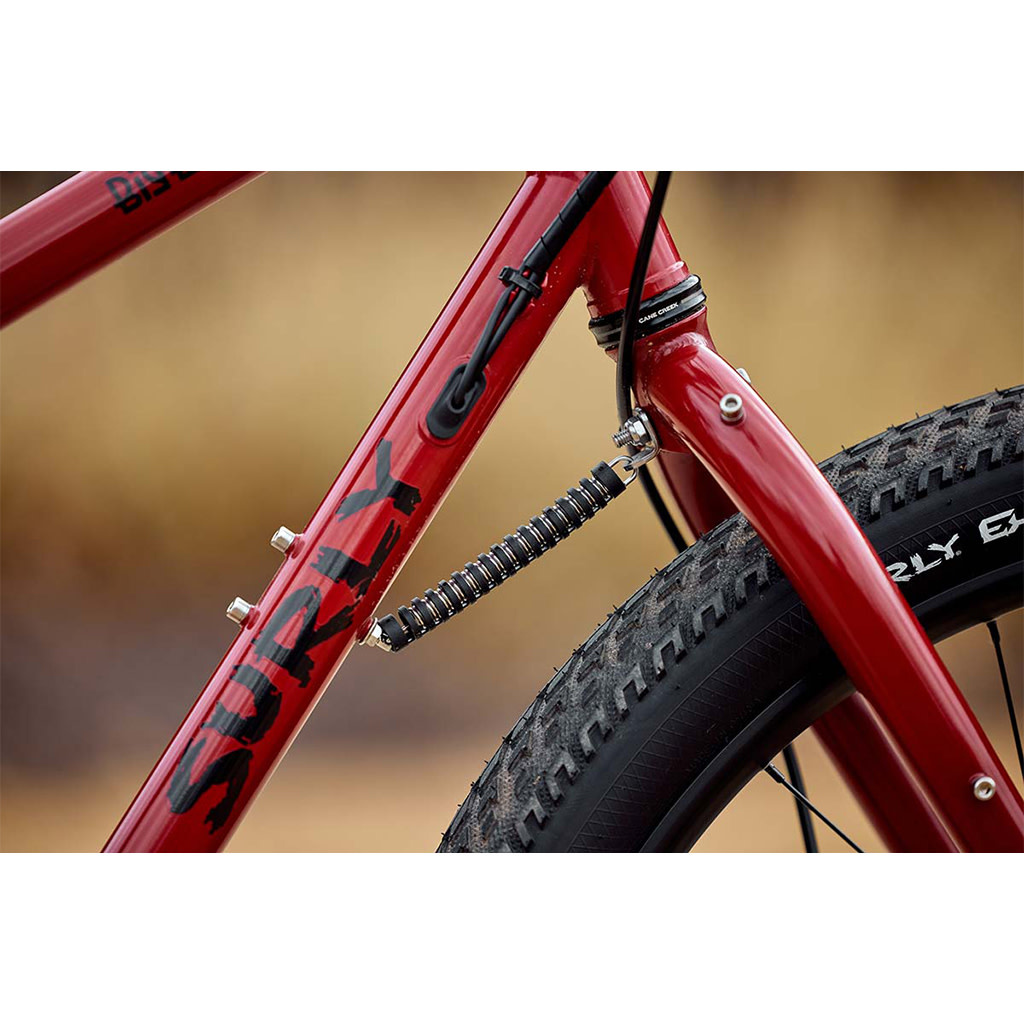

• Headset  -  Cane Creek ViscoSet [tuned for Surly Big Easy] upper. 40 series lower
• Stem  -  Sunday Freeze Top Load 48mm
• Handlebar  -  Surly Sunrise
• Grips  -  Velo Black
• Seatpost  -  TransX JD-YSP15, 30.9mm Dropper Post
• Saddle  -  WTB Volt

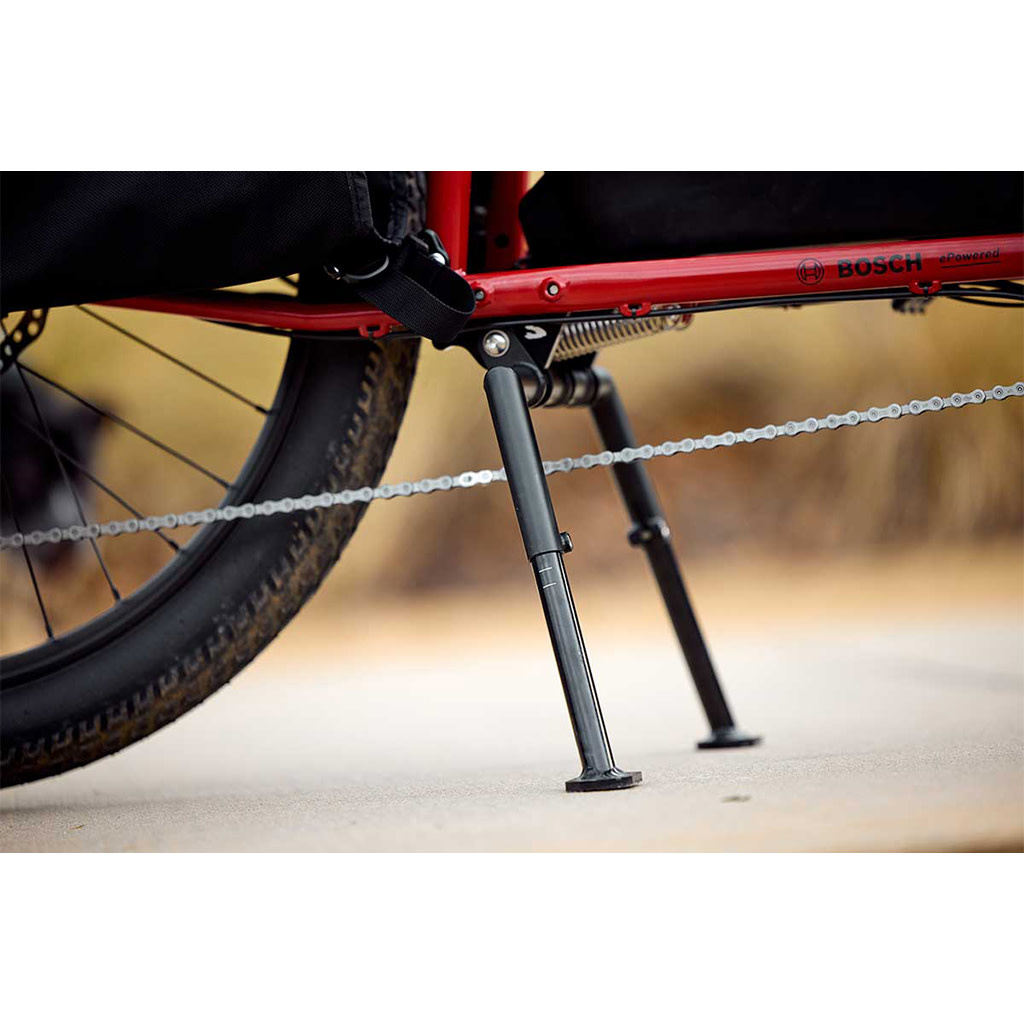

• Misc  -  Deck, rails, bags, kickstand, and one set of round pegs include

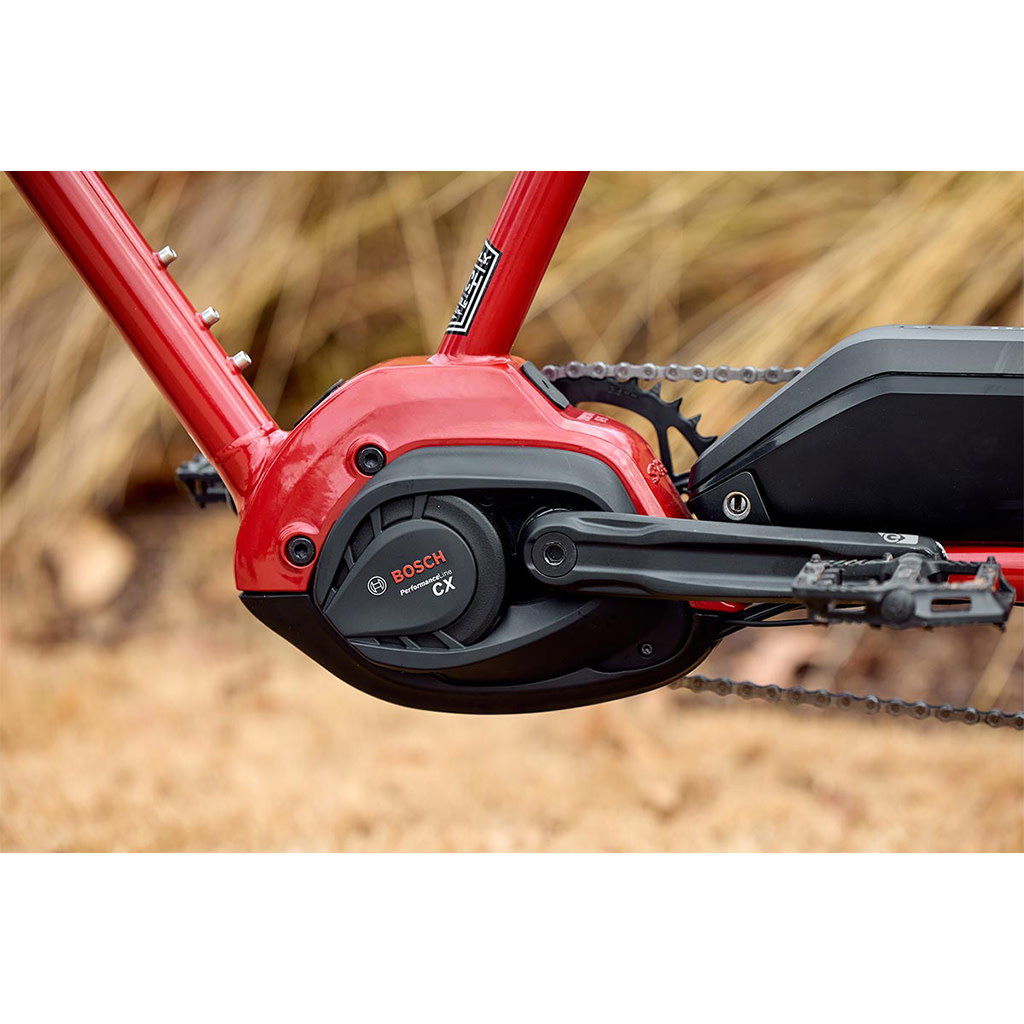

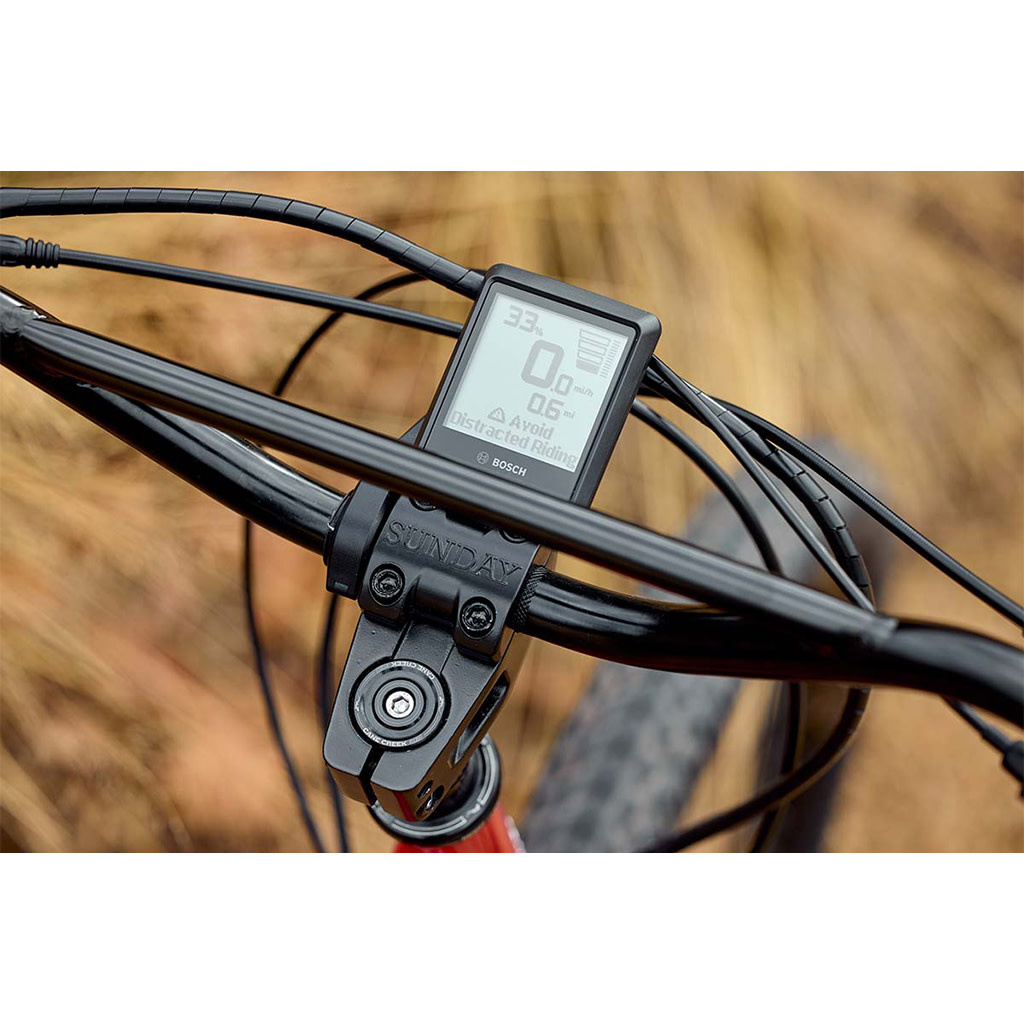

• Drive Unit  -  Bosch Performance Line Cargo with Intuvia 100 Display and LED Remote
• E-Bike Classification  -  Class 1
• Drive Type  -  Mid-Drive
• Max Assist Speed  -  20 mph
• Motor Torque  -  85Nm
• Range Estimate  -  A 15–50 mile range is normal for Big Easy, but your mileage may vary depending on support mode, rider weight, cargo load, etc.
• Assist Levels  -  4 Assist Levels - Eco, Tour+, Cargo, Turbo
• Walk Assist  -  Yes
• Max Motor Assist  -  340%, 600W
• Throttle  -  No
• Gross Payload  -  400lb max total rider + cargo
• Battery Capacity Watt Hours  -  725Wh
• Battery Capacity Amp Hours  -  19.2Ah
• Battery Power Volts  -  36V
• Removable Battery  -  Yes, Bosch PowerPack 725Wh
• Estimated Charge Time  -  6 hours
• Charger Included  -  Yes, Bosch 4A Charger (110V)
• Lights Included  -  No
• Front Derailleur  -  N/A
• Rear Derailleur  -  Shimano Cues U4000 GS
• Cassette  -  Shimano Cues LG400, 11-46t, 9 speed
• Chain  -  KMC eGlide EPT Anti-Rust
• Crankset  -  FSA E-Bike CK-763/IS, paired with 38T FSA Chainring
• Shifter  -  Shimano Cues U4000
• Brakes Levers  -  Tektro HD-T740
• Brake Calipers  -  Tektro HD-T740, 4 Piston
• Rotors  -  Tektro 203mm F/180mm R, 6-Bolt
• Bottom Bracket  -  N/A
• Front Hub  -  Novatec 15 x 110mm, 32h, 6 Bolt
• Rear Hub  -  Novatec 12 x 148mm, 32h, 6 Bolt
• Spokes  -  Straight 14g, Black
• Rims  -  Alex MD30, 26", 32h
• Front Tire  -  Surly Extra Terrestrial 26 x 2.5" 60tpi, Tubeless Compatible
• Rear Tire  -  Surly Extra Terrestrial 26 x 2.5" 60tpi, Tubeless Compatible

Components subject to change without notice
