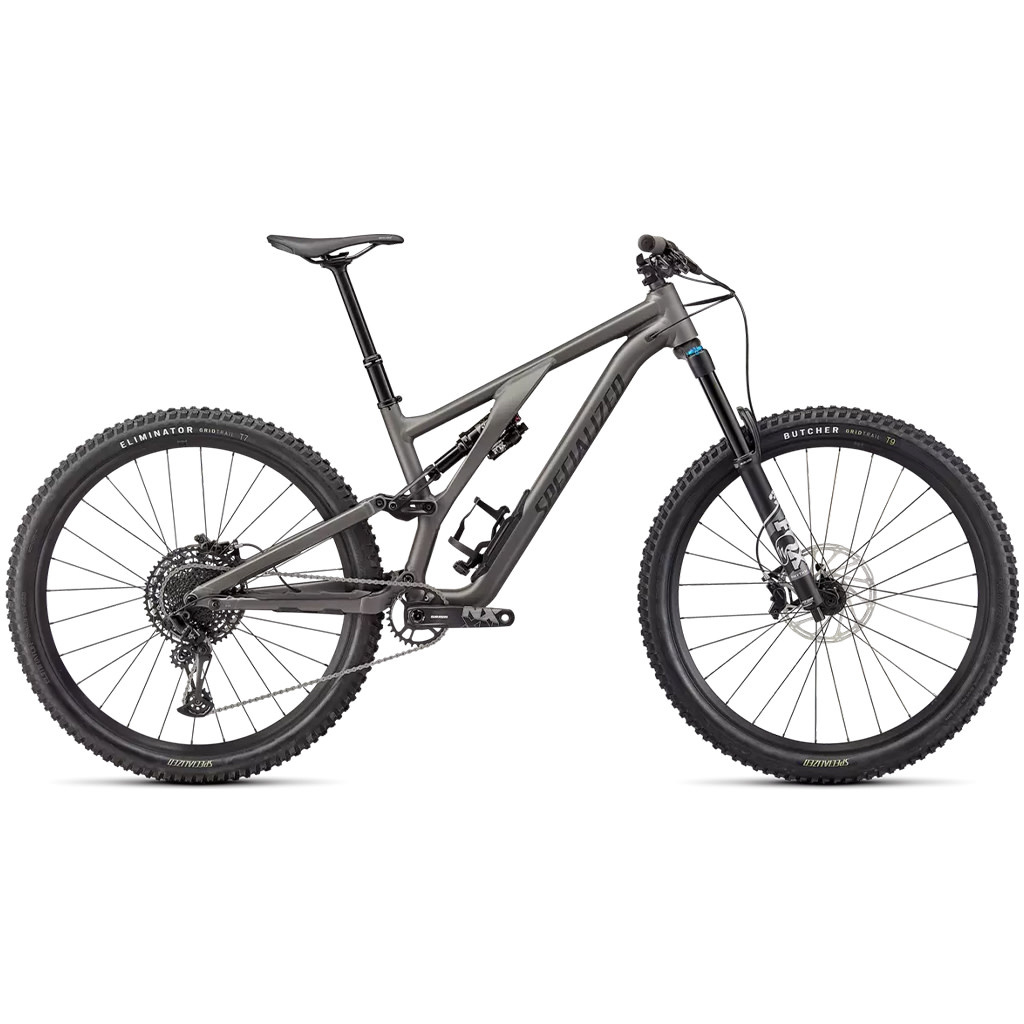

Specialized Stumpjumper EVO Comp Alloy Mountain Bike 2023

Stumpjumper EVO Comp Alloy

Let's get something clear, the Stumpjumper EVO Alloy isn't a "normal" trail bike. It's built to get gnarly, plain and simple. Featuring the same all-new design as its carbon brethren—including an adjustable head tube angle, 150mm of performance tuned travel, the adaptability of S-Sizing, and SWAT™ Door integration—in a lightweight yet tough M5 Alloy chassis, you're going to be able to bomb down trails that you thought you couldn't touch without a full-blown DH rig.

Spec’d with a no-fuss SRAM NX Eagle 12-speed drivetrain, bomber 30mm-wide alloy wheels, and plush Fox FLOAT Performance suspension, there’s no question the Stumpjumper EVO Comp Alloy is dressed to shred.

Technical Specifications

• Frame  -  M5 Alloy chassis and rear-end, asymmetrical design, 29" Trail Geometry with S-Sizing, SWAT™ Door integration, head tube angle adjustment, horst pivot BB adjustment, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 150mm of travel
• Seat Binder  -  Alloy, 38.6mm
• SWAT  -  SWAT™ Door integration
• Rear Shock  -  FOX FLOAT X Performance, Rx Trail Tune, EVOL Air sleeve, 2-position lever w/ LSR adjustment, S1:210x50mm, S2-S6:210x55mm
• Fork  -  FOX FLOAT 36 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm axle, 44mm offset, S1:150mm of travel, S2-S6:160mm of travel
• Stem  -  Alloy Trail Stem, 35mm bar bore
• Handlebars  -  Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 800mm width
• Tape  -  Specialized Trail Grips
• Saddle  -  Bridge Comp, Hollow Cr-mo rails, 155/143mm
• SeatPost  -  X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 100mm, S2: 125mm, S3: 150mm, S4/S5: 175mm, S6: 190mm
• Front Brake  -  4-piston caliper, hydraulic disc, 200mm
• Rear Brake  -  SRAM Code R, 4-piston caliper, hydraulic disc, 200mm
• Rear Derailleur  -  SRAM NX Eagle, 12-speed
• Shift Levers  -  SRAM NX Eagle, trigger, 12-speed
• Cassette  -  SRAM NX Eagle PG-1230, 12-speed, 11-50t
• Chain  -  SRAM NX Eagle, 12-speed
• Crankset  -  SRAM NX Eagle, DUB, S1:165mm, S2-S5: 170mm, S6: 175mm
• Chainrings  -  Steel, 30T
• Bottom Bracket  -  SRAM DUB, BSA 73mm, threaded
• Rims  -  Specialized 29, hookless alloy, 30mm inner width, tubeless ready
• Front Hub  -  Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
• Rear Hub  -  Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
• Spokes  -  DT Swiss Industry
• Front Tire  -  Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
• Rear Tire  -  Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 29x2.3"
• Inner Tubes  -  Standard, Presta valve

* Specifications are subject to change without notice
